ACHI HR560, Most Cost-effective Optical Alignment BGA Repair Station

Cost-effective optical alignment bga rework station, ACHI factory new design

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414

easybga@gmail.com

0086-755-89378931

Sunny-scotle

ACHI HR560 optical Alignment BGA rapair machine main features

1. 3 tempprature zones.
2. Latest New Optical Alignment System, easy operate, success rate can be 100%.
3. Drawer-Sstyle 7“ Highdefinition touch screen.
4. MCGS programble PLC controller.
5. Top heater device and mounting head 2 in 1 design.
6. Semi amtomatic soldering and desoldering.
7. With Micrometer to do Micro adjust, X Y axis direction moving PCB board,
8. With Rotating knob to adjust the chip.
9. With a powerful cross-flow fan to cool PCB rapidly to prevent it from deformation.
10. Cost-effective and efficient.
11. Vedio supported.
12. CE approval

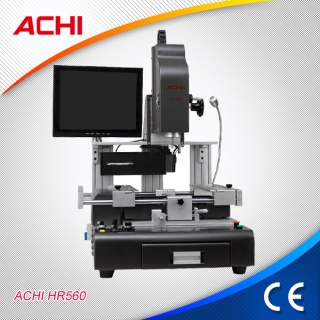

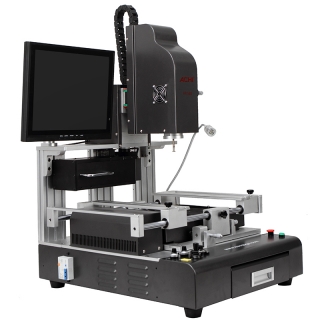

ACHI HR560 BGA Rework Staion 5.JPG

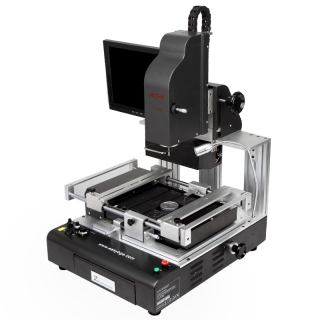

ACHI HR560 BGA Rework Staion 6.JPG

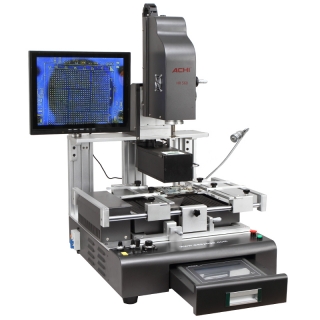

ACHI HR560 Main Structure.JPG

Function Buttons of ACHI HR560 BGA Soldering Station.jpg

Micro Adjust Knobs of Function Buttons of ACHI HR560 BGA Soldering Station.jpg

Optical Alignment Process 2.jpg

Main technical details of this ACHI HR560 optical alignment BGA rapair machine

Power voltage	220V±10% VAC 50/60Hz
Total power	5300W Max.
Top hot-air heater	1200W
Bottom hot-air heater	1200W
Bottom IR heater	2700W
Size of buttom heater	360*240mm
PCB Size	Max.500400mm / Min.2222mm
BGA Chip Size	Max.8080mm / Min 22 mm
Positioning	V-type groove, with universal fixture
Temperature control	K-type thermocouple (Closed Loop) ±2℃
Surface mounting accuracy	within ±0.01mm
Machine dimension	650600720mm
New Weight	68 KG
