Latest ACHI HR15000 Semi-Automatic BGA Rework Station

Latest ACHI HR15000 Semi-Automatic BGA Rework Station. It presents the latest trend of BGA rework station. With optical alignment system, CCD camera, laser position, Very easy to eperate!

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
Sunny-scotle

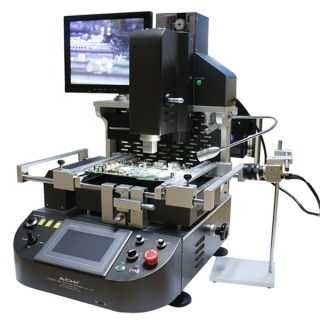

ACHI HR15000 presents the new trend of BGA rework stations, very easy to operate.

Highlights of ACHI HR15000 as below:

1. Latest new optical alignment system, easy to operate, success rate can be 100%.
2. with laser positioning.
3. Automatic identify BGA chips ang mounting height.
4. Top heater device and mounjting head 2 in 1 design.
5. Semi amtomatic soldering and desoldering.
6. CCD Ssystem and Optical Alignment System combined, can change the Screen by one button.
7. Auto matic adjust chiromatism resolution and brightnes.
8. With Lase opsition.
9. With Micrometer to do Micro adjust.
10. With a powerful cross-flow fan to cool PCB rapidly to prevent it from deformation.
11. With 3 tempretture zone and 3 external temp sensor socket.

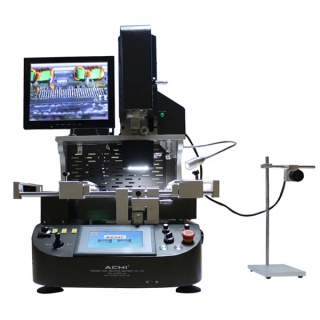

Alignment as below:

Laser positioning

CCD Camera for obseving the melting process


Automatic vacuum pump

Camera for easy alignment

Micro-adjust buttons












Main technical detailes for ACHI HR15000 semi-automatic BGA rework station:

Power voltage220V±10% VAC   50/60Hz
Total power5300W Max.
Top hot-air heater1200W
Bottom hot-air heater1200W
Bottom IR heater2700W
Size of buttom heater360*240mm
PCB SizeMax.500*400mm / Min.22*22mm
BGA Chip SizeMax.80*80mm / Min 2*2 mm
PositioningV-type groove, with universal fixture
Temperature controlK-type thermocouple (Closed Loop) ±2℃
Max.amplification230X
Surface mounting accuracy within ±0.01mm
CCD and optical systemZoom in And out,beam spilt, micro-asjust,Antomatic adjust chiromatism resolution and brightness
Machine dimension640x630x900mm
Net Weight68 KG

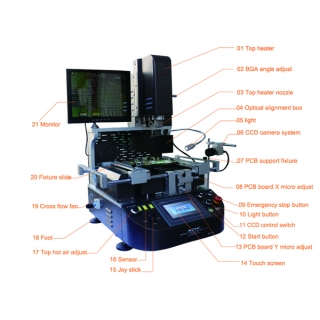

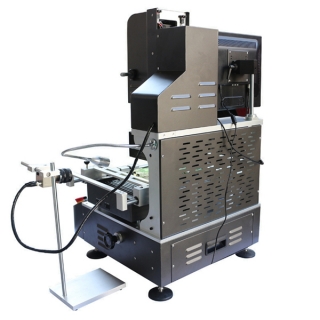

Main structures for this semi-automatic BGA Rework machine



ACHI HR15000 Semi-automatic BGA rework station can be widely used, the diffirence with other common BGA rework stations is it is more advanced and easy to operate, making bga rework more much easier.
